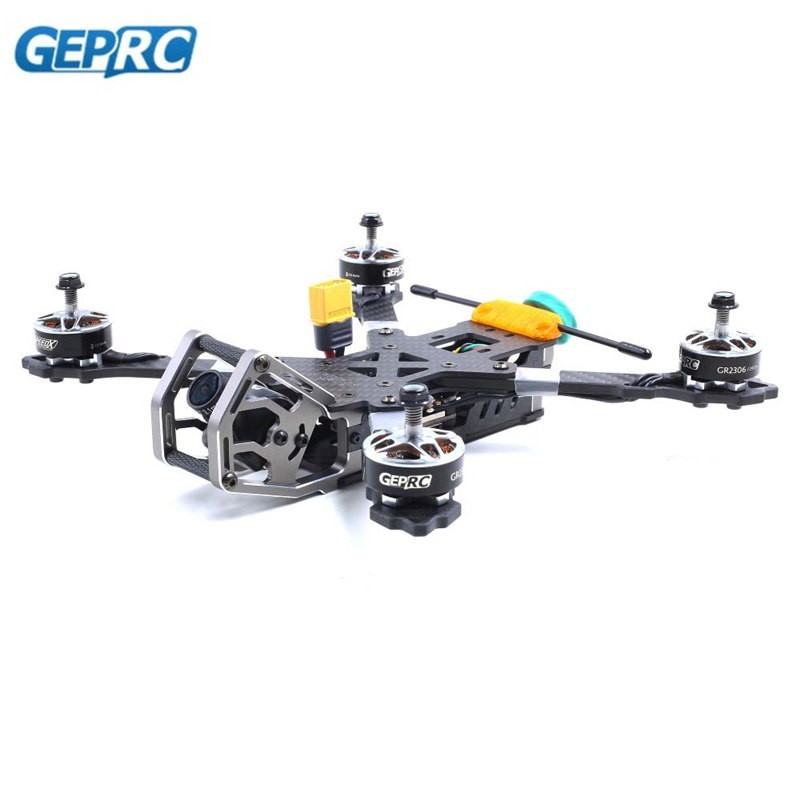

- Frame: GEPRC GEP-KHX5
- Carbon: Full 3K carbon fiber Twill
- CNC: High precision CNC 7075
- Wheelbase: 230mm
- Bottom plate thickness: 2mm
- Side plate thickness: 1.5mm
- Arms plate thickness: 4mm
- Flight controller: SPAN F4 Tower AIO
- MCU: STM32F405
- MPU: MPU6000
- ESC: 40A * 4 BLHeli_S (Dshot 150/300/600) support 2~5S LiPo
- VTX: 5.8GHz (48 Channel) (OFF/25/200/600mW)
Features:
- Frame layout is reasonable, center of gravity center, reduce energy waste
- Use mature and stable GEP-KHX5 frame, strong and fall - resistant, all 3k carbon plate
- Use SPAN F4 Tower, stable and simple
- High efficiency GR2306 2450kv motor, with GEP5040 propeller, achieve perfect output
- Use the Pagoda2 antenna to determine the image quality
- Runcam Swift 2 lens for clarity
Package:
1 x GEPRC Elegant BNF/PNP Quad
10 x GEP5040 propeller CW
10 x GEP5040 propeller CCW
3 x Battery strap
1 x Spare arms
2 x Pagoda2 RHCP MMCX antenna (1pcs installed)
1 x Frsky R-XSR Receiver ( BNF Only)
